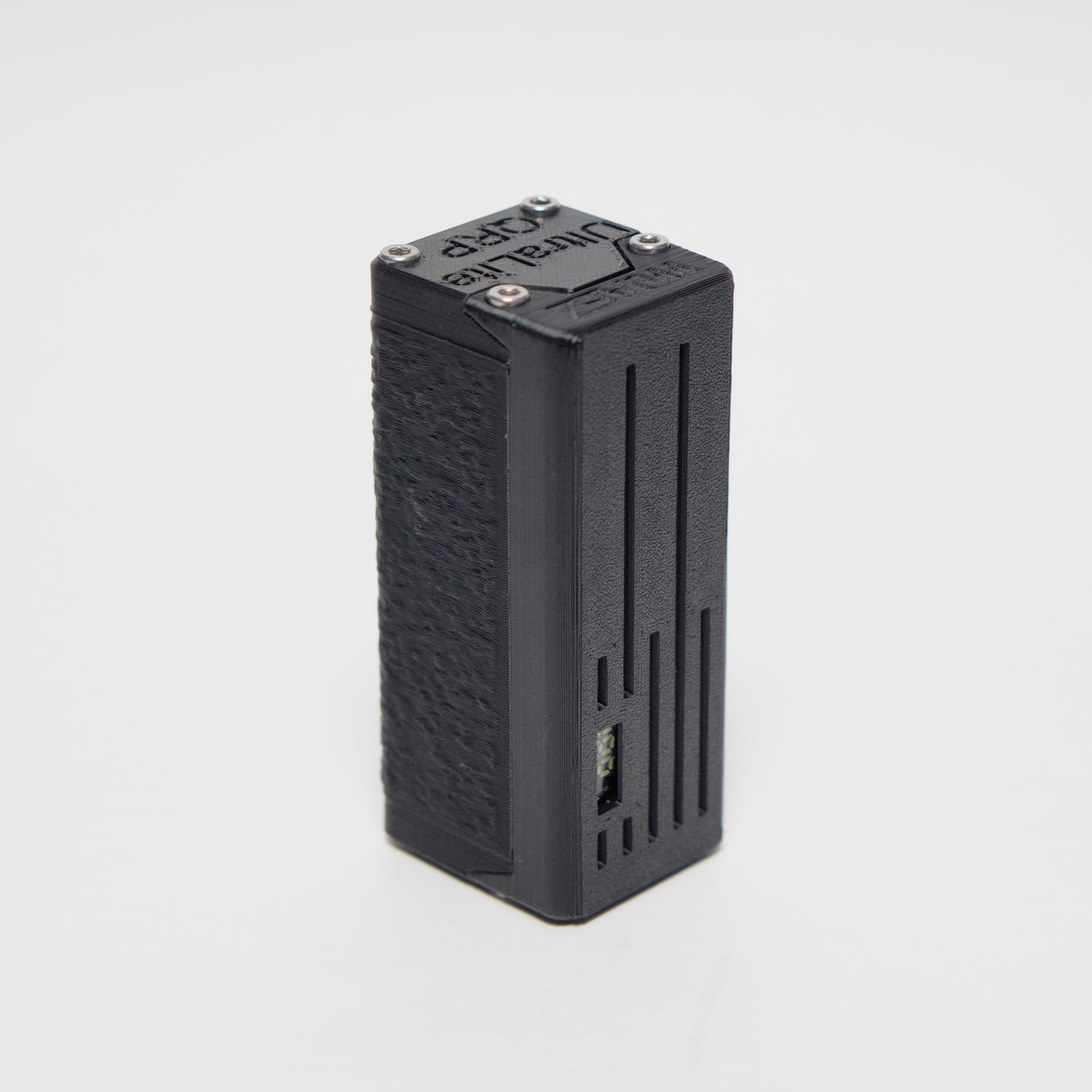

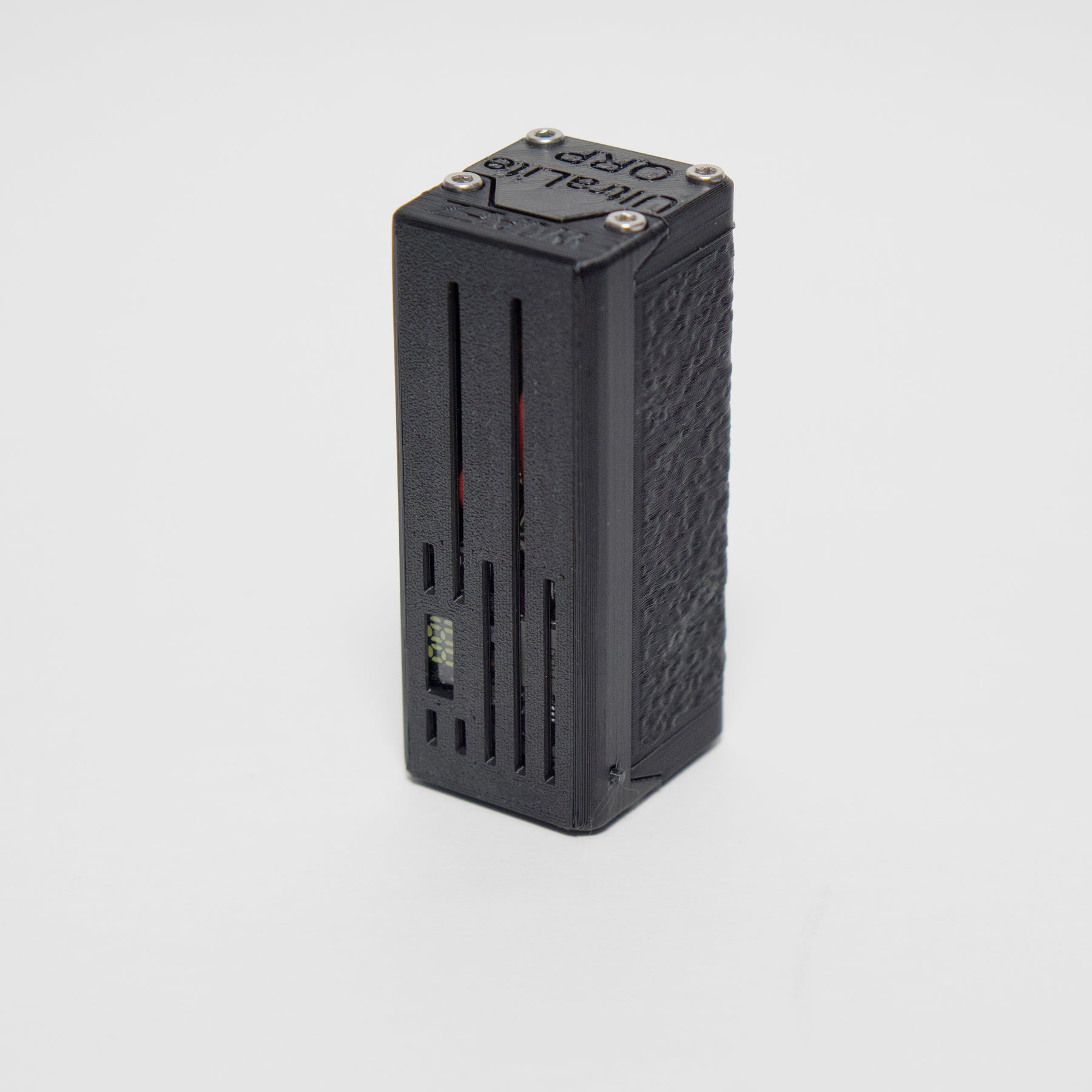

UltraLite QRP Battery — Lightweight USB-C PD Power for Portable Radios

Light. Quiet. All-Day Power.

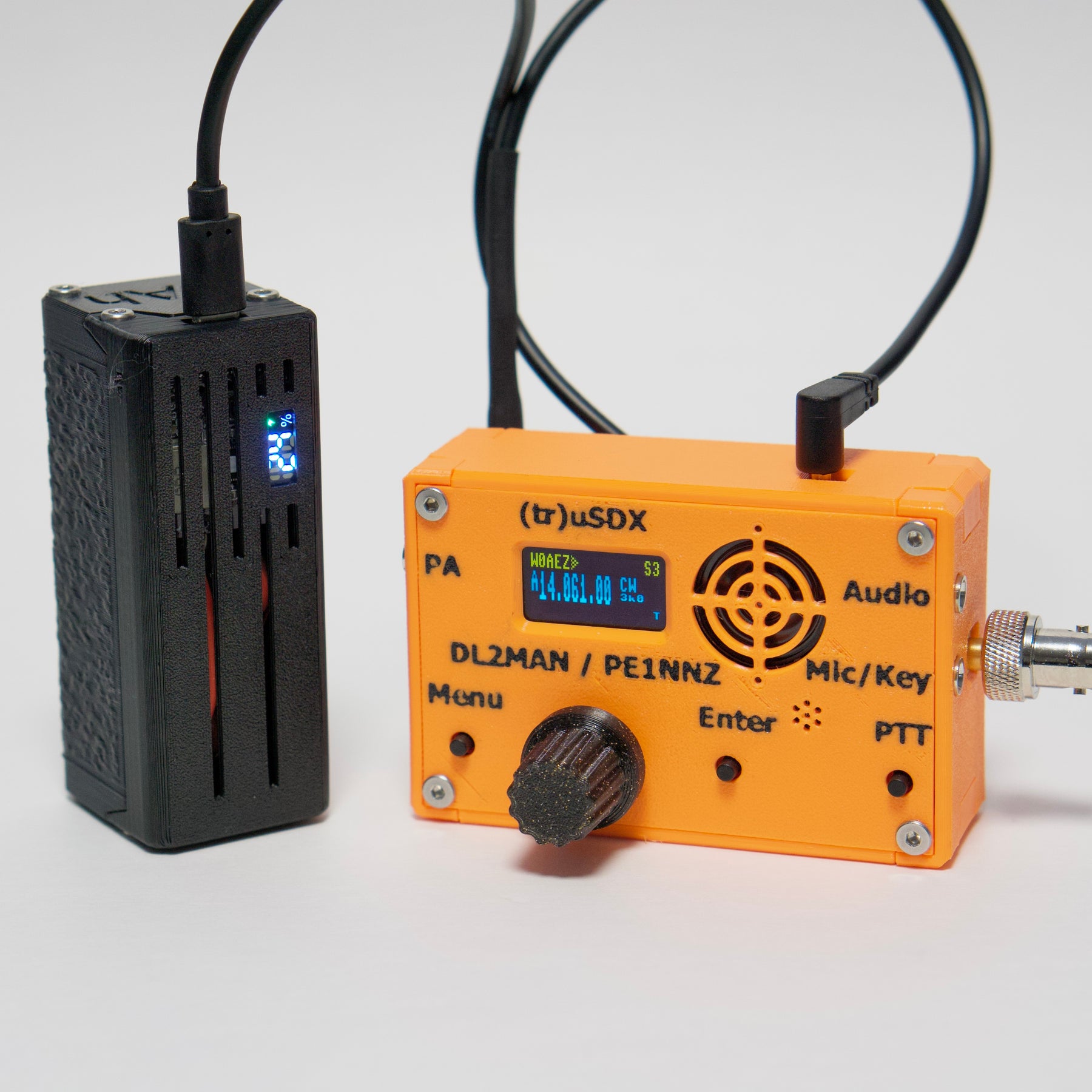

The UltraLite QRP Battery is a compact, RF-quiet 18Wh power source built for portable and field operations. It delivers selectable 5V, 9V, or 12V output via a USB Power Delivery trigger cable, charges in under 2 hours at full charge speed (15W or higher), and weighs under 4.5 oz. Take it to a summit, a park, or a go-bag. It just works.

Designed, printed, and hand-assembled in Colorado, USA.

Specifications:

Capacity: 18Wh
Cell: Genuine Samsung 50E 21700 (user-replaceable)
Output Voltage: 5V, 9V, or 12V (selected by trigger cable)
Max Power Output: 22W
Charging: USB-C, up to 20W
Charge Time: Under 2 hours (at full charge speed)
RF Noise: RF-quiet design. Minimal interference with sensitive radio equipment

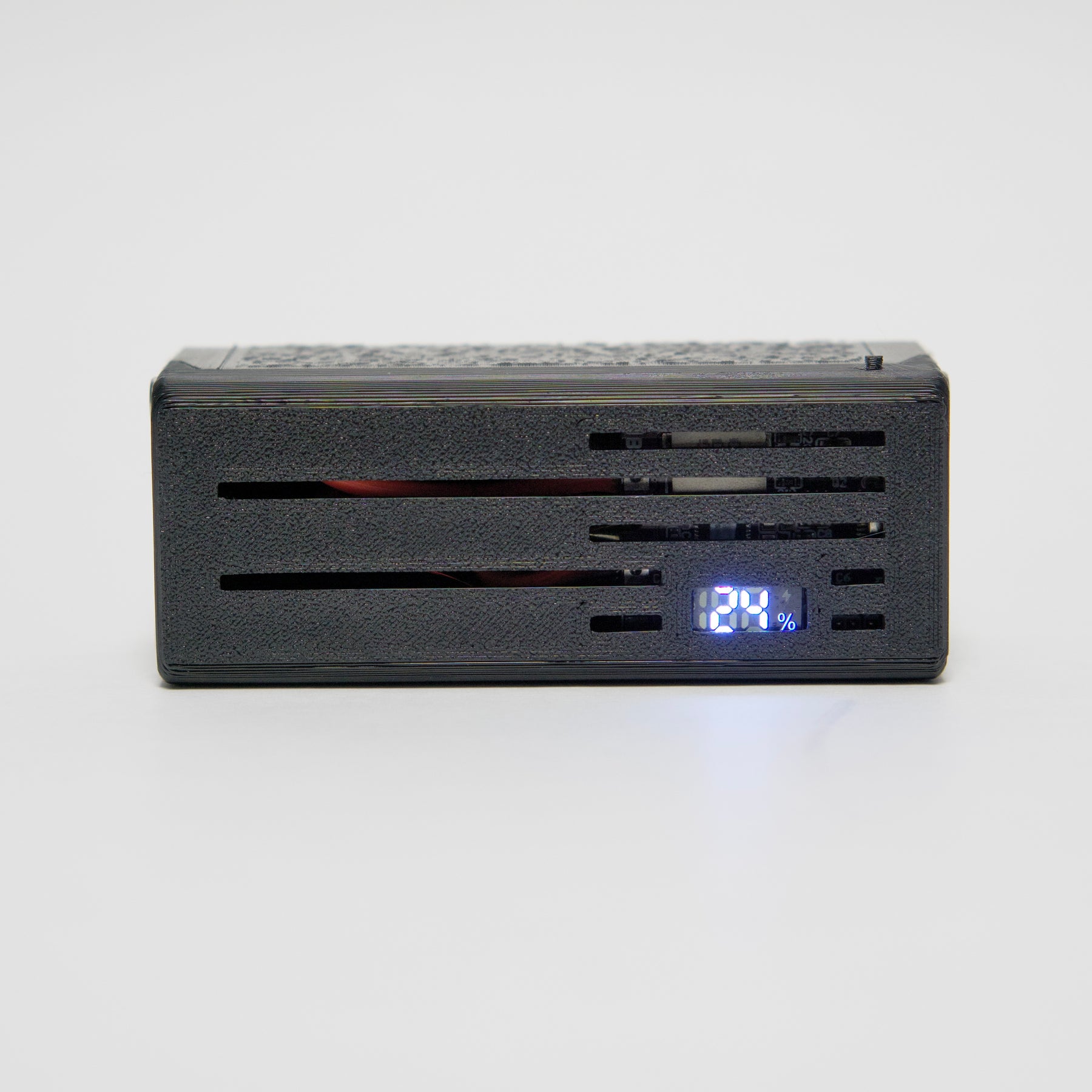

Display: Digital battery percentage readout with USB PD active indicator
Housing: 3D-printed ASA (heat-resistant, UV-stable)
Weight: Under 4.5 oz
Warranty: 1 year

Battery Display Calibration: The power management board includes a dedicated coulomb counter for the battery percentage display. Out of the box, the display may not be accurate. The coulomb counter requires approximately 12 full charge-and-discharge cycles to properly calibrate. Until then, the percentage shown is an estimate and my power down while reading a high state of charge. This is normal behavior and will improve with use.

How Voltage Selection Works: The output voltage is set by the trigger cable you pair with the battery. Each cable negotiates a fixed voltage from the battery via USB Power Delivery. The trigger cable is sold separately (see below), so buy the battery and the cable that matches your radio's input:

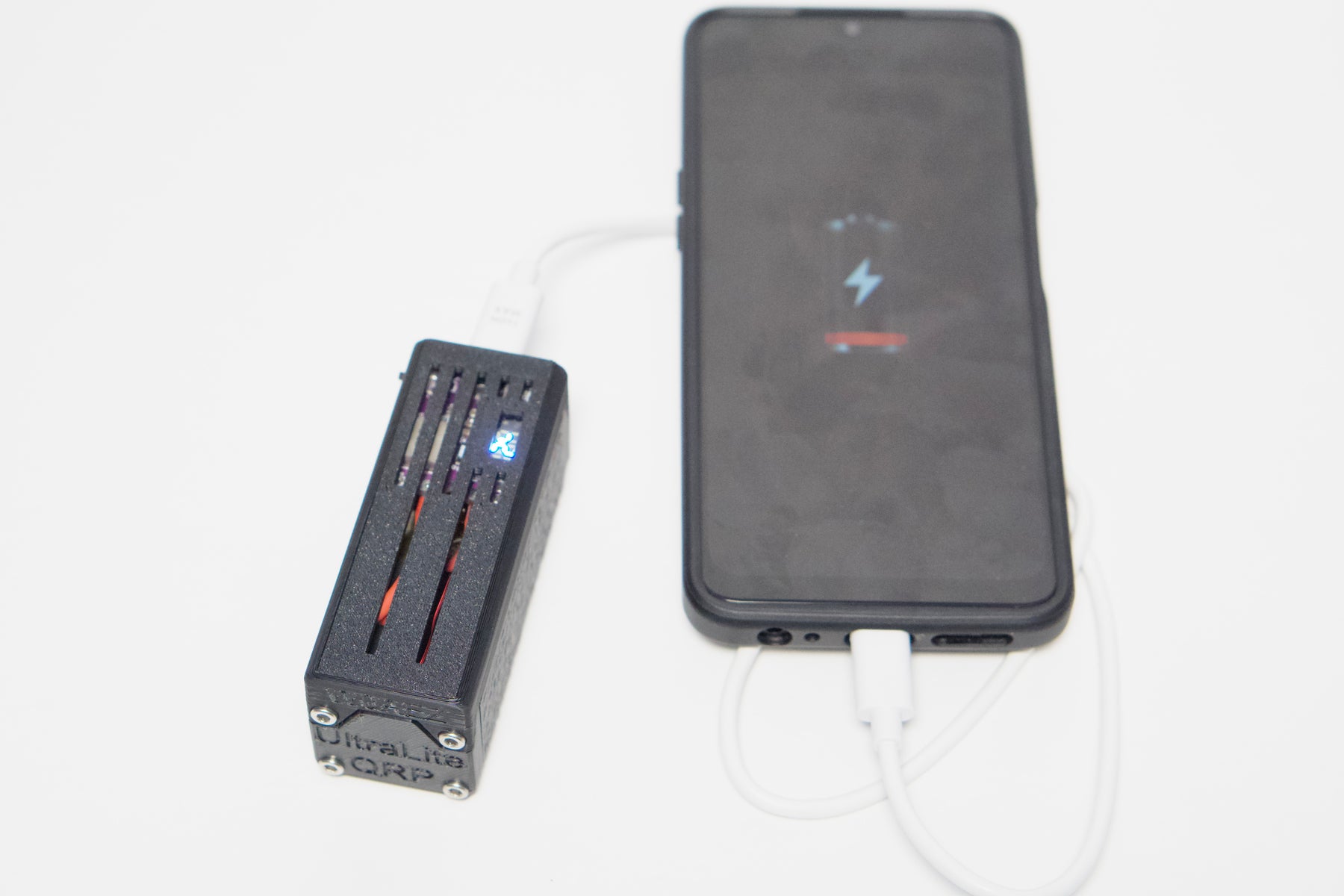

5V: USB devices and low-voltage accessories

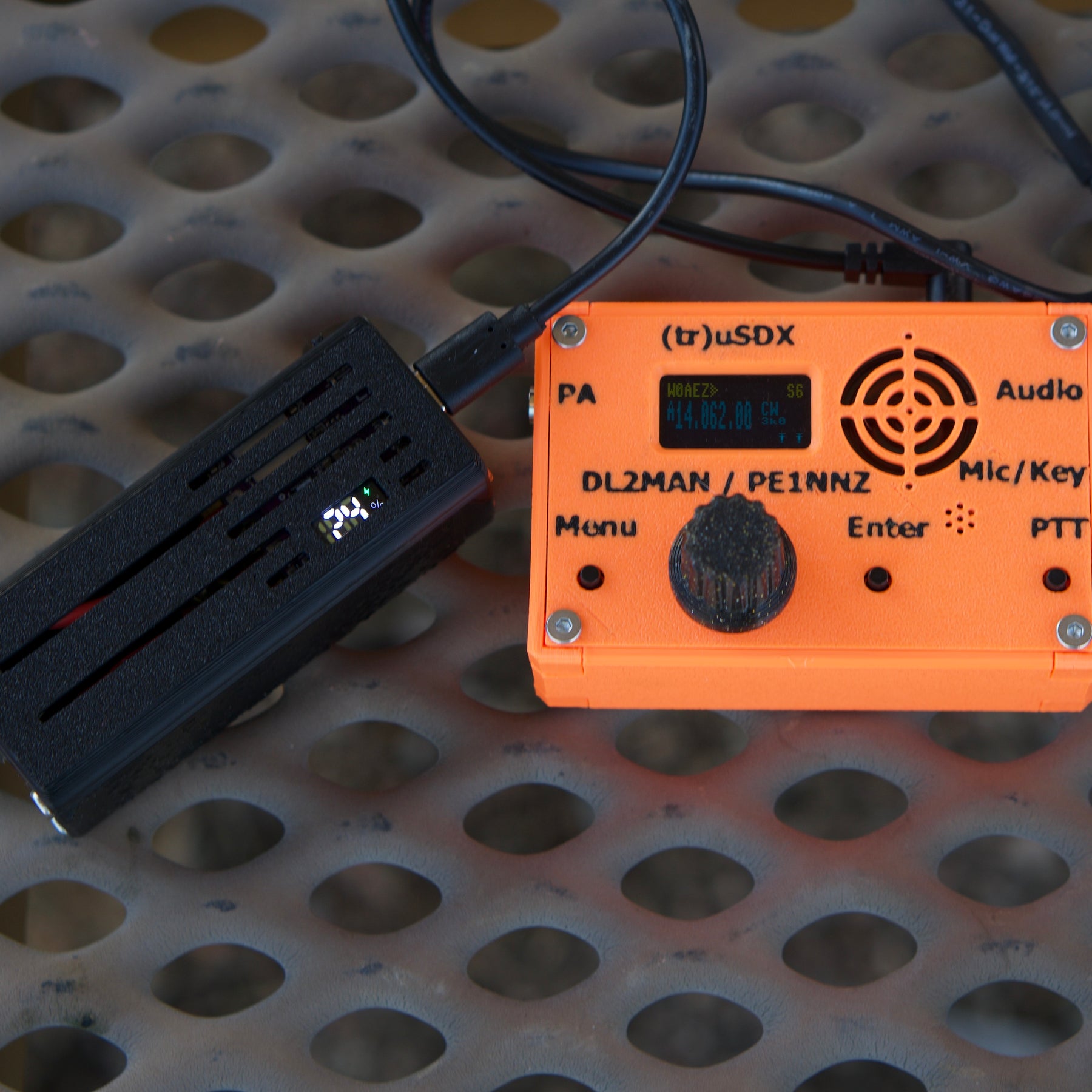

9V: QRP radios that accept 9V input

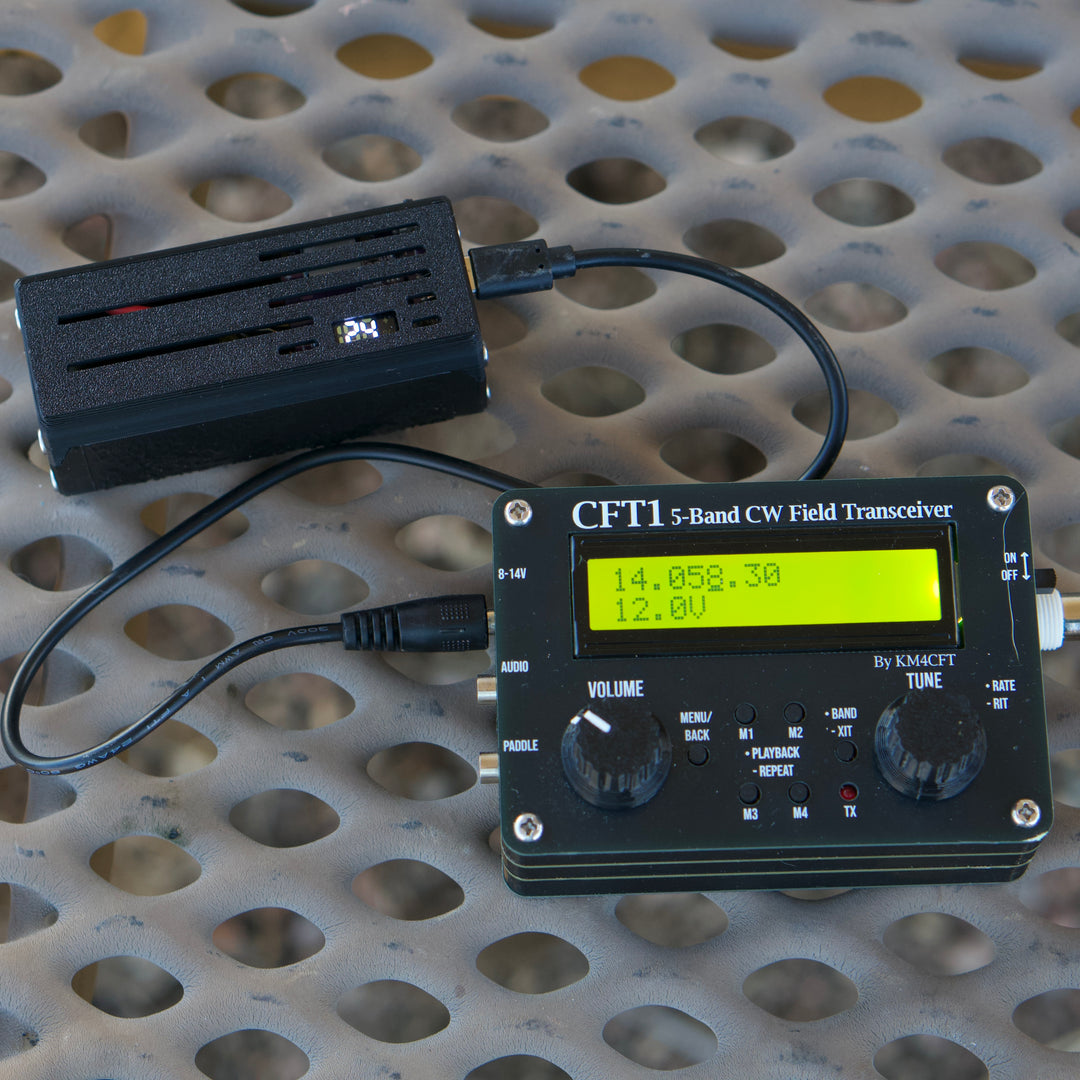

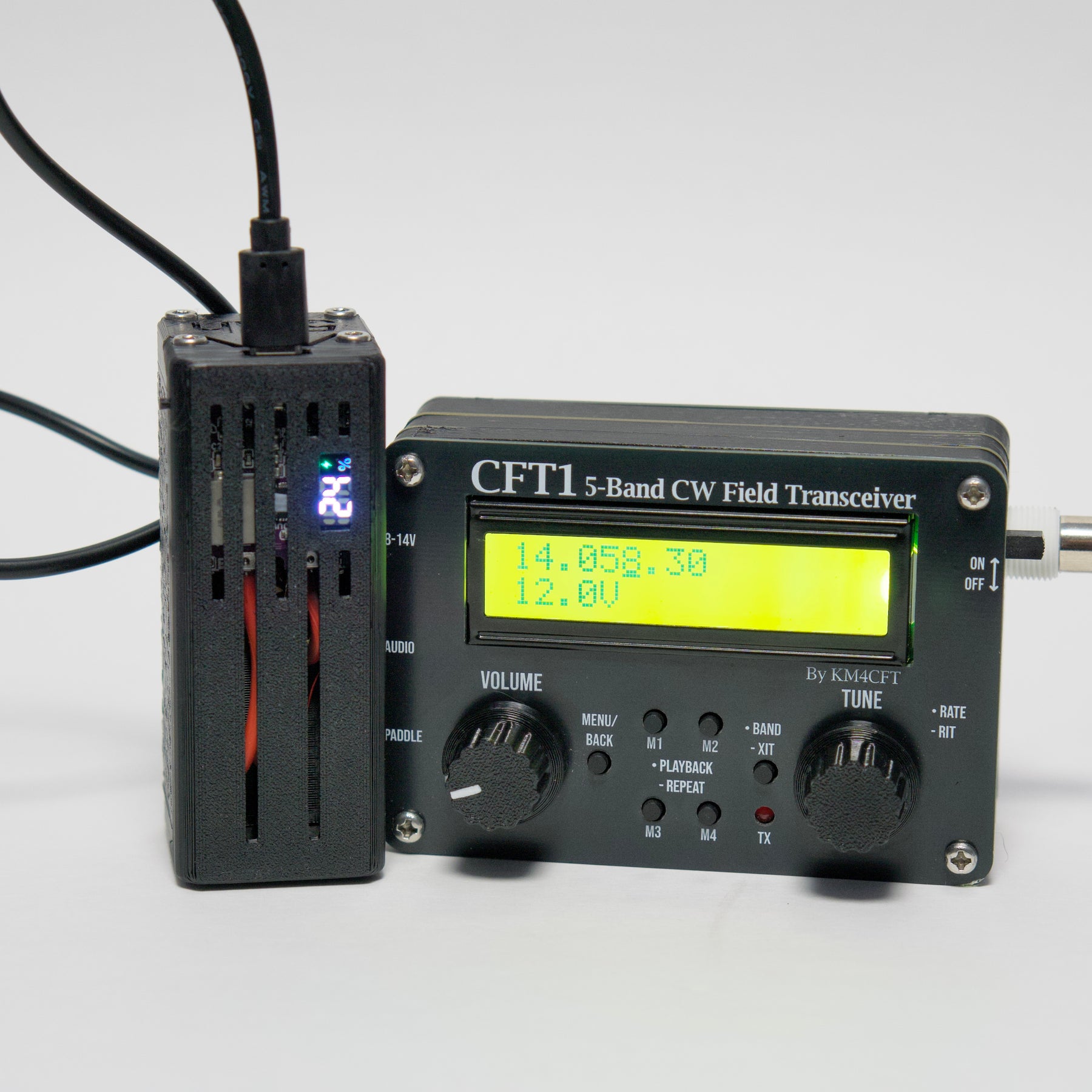

12V: QRP radios and accessories that accept 12V input

Trigger Cable (sold separately): The trigger cable is not included with this battery. Add the cable that matches your radio's voltage and barrel jack:

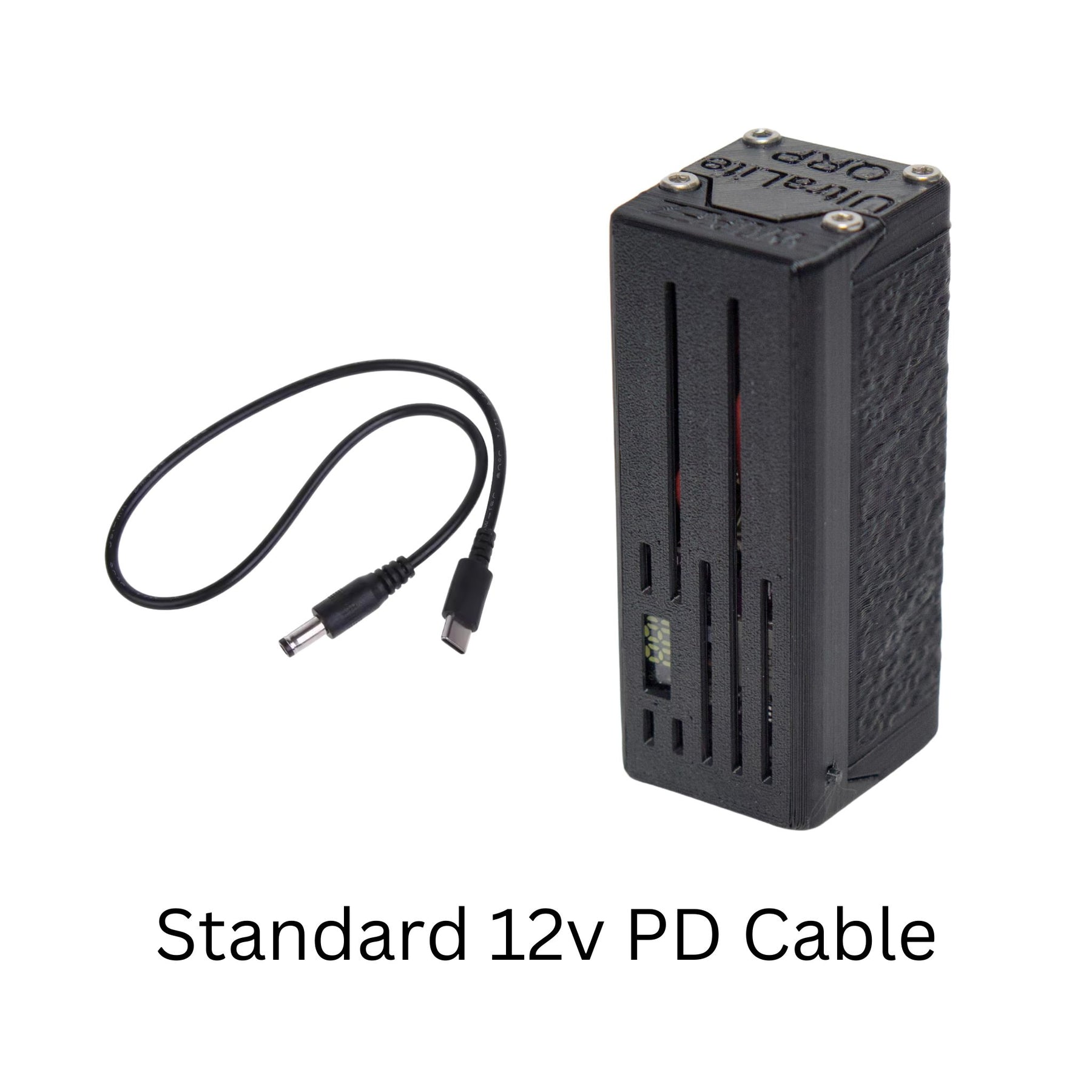

Standard PD Trigger Cable. Rated for 3A. DC 5.5 x 2.1mm barrel jack. 15.5 inches long.

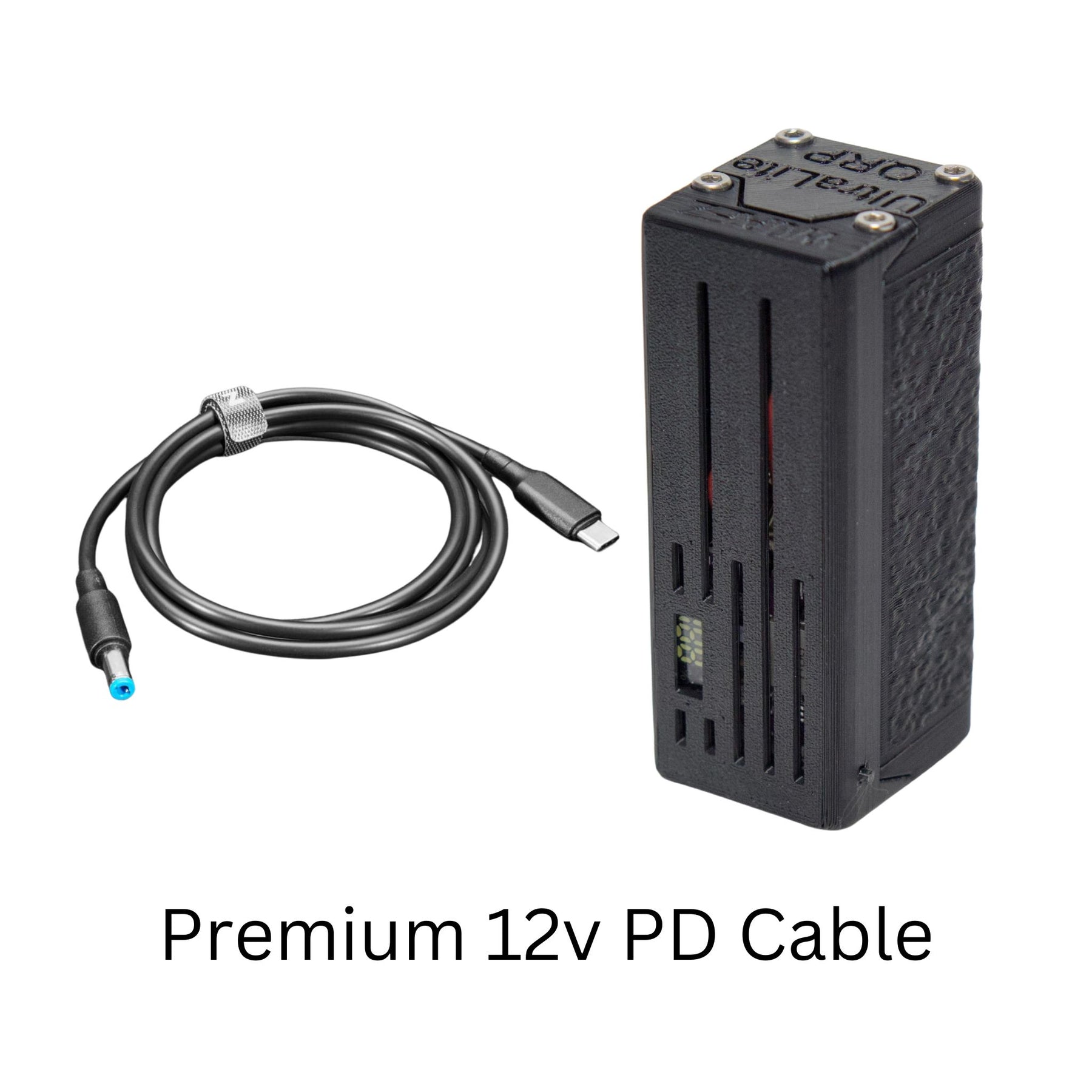

Premium 12V PD Trigger Cable (Adafruit). Rated for 5A. DC 5.5 x 2.5mm barrel jack. About 4 feet long. Holds voltage better under transmit.

The two cables use different barrel jack sizes (2.1mm and 2.5mm), so check your radio's jack before ordering.

Shop the PD trigger cable here.

Ideal For:

SOTA, POTA, and field day operations
QRP HF, VHF, and UHF portable setups
Emergency and go-bag communications
Backpacking and lightweight hiking
Any portable device that accepts 5V, 9V, or 12V DC input

What's Included: (1) UltraLite QRP Battery

Design Details: Each battery is 3D-printed and hand-assembled. Minor texture variations are cosmetic and do not affect performance. The battery features a digital display showing remaining capacity as a percentage, with a green lightning bolt icon indicating active USB PD output or input.

Charging Notes: Recharge from any USB-C power source: wall adapters, car chargers, or solar panels with USB output. Not all USB-C cables are created equal. If charging doesn't start, try a different cable.

Recommended Charger: Any USB-C charger rated 15W or higher will charge the battery at full speed. Lower-wattage chargers will still work, they'll just charge slower. PPS (Programmable Power Supply) chargers will automatically negotiate the optimal charge rate but are not required. A USB-A to USB-C cable with a standard USB-A wall adapter also works and is the most universally reliable option.

User-Serviceable Cell: The UltraLite uses a single Samsung 50E 21700 cell. When it eventually degrades, you can replace it yourself. No need to buy a whole new battery.

Lead Time & Shipping: Batteries are made to order in small batches. Current lead time is posted at the top of the site. Please check there for the most up-to-date estimate. Shipping options and costs are calculated at checkout.

USA: USPS, UPS, and FedEx
International: UPS and DHL. Customer is responsible for any import duties, taxes, or brokerage fees.

FAQ:

Q: The battery percentage display doesn't seem accurate.
A: This is expected for new units. The onboard coulomb counter needs about 12 full charge/discharge cycles to calibrate. Accuracy improves with each cycle.

Q: What voltage do I need?
A: Check your radio's DC input specs. Many QRP rigs take 12V, while others take 9V. Choose the trigger cable that matches.

Q: Can I charge this with a solar panel?
A: Yes. Any USB-C power source that supports at least 5W can charge the battery, including compatible solar panels.

Q: The barrel jack on the Premium cable doesn't fit my radio.
A: The Standard cable uses a DC 5.5 x 2.1mm barrel jack. The Premium cable uses DC 5.5 x 2.5mm. A 2.5mm plug will not fit a 2.1mm jack at all. Check your radio's barrel jack size before ordering, and note a 2.1mm plug will only fit loosely in a 2.5mm jack and may not make reliable contact.

Q: Can I replace the cell myself? A: Yes. The UltraLite is user-serviceable. It uses a single Samsung 50E 21700 cell.
